Name: CZ-1000D Big Capacity Salt Spray Test Chamber Composite Salt Spray Corrosion Test Machine ASTM B117
Brand: Dongguan Zhongzhi Times Test Equipment Co., Ltd.
Availability: InStock

Home Products Corrosion resistance testing machine

CZ-1000D Big Capacity Salt Spray Test Chamber Composite Salt Spray Corrosion Test Machine ASTM B117

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Zhongzhi

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	20.6KW, Electronic	Accuracy:	Humidity Resolution: 0.1% R.H
Voltage:	380V	Type:	/
Application:	Auto Testing, Plastic Testing, Laboratory Testing, Lab Testing, Electrical Testing	Protection Class:	/
Power Supply:	AC380V 50/60HZ 30.8kW 37A	Material:	Titanium Plate
Testing Method:	NSS ACSS/CASS	Lab Volume:	960L
Brine Tank Volume:	100L	Brine Concentration:	Sodium Chloride Solution 5%
Temperature Range:	20~70℃

Products Description

Product Introduction

The salt dry wet testing machine is mainly used for accelerated corrosion testing of materials in outdoor salt polluted environments. This equipment is the closest to natural conditions and simulates the conditions commonly encountered in natural environments. It performs self-healing tests under harsh conditions several times that of natural environments, such as salt spray, dry, humid, room temperature static, etc. It can perform tests in any order or separately.

Specification

Model	CZ-1000D	CZ-1600D	CZ-2000D
Internal dimensions (mm)	1200x800x1000	1600x800x1000	2000x800x1000
External dimensions (mm)	2250x1720x1220	2950x1720x1220	3550x1900x1220
Laboratory temp range	20°C~70°C
Saturated barrel temp range	RT~70°C
Humidity range	20%~98%RH
Salt spray volume	1~2ml (h.80cm2) (collect for at least 16 hours and take the average value)
Spray pressure	70~170KPa
Sample placement angle	20°+5°
_{Dry and wet salt spray rapid alternation process}	Salt spray test 1min~99H arbitrarily set: Drying test 1min~99H arbitrarily set: Wet heat test 1min~99H arbitrarily set:
Spray mode	Continuous spray show, periodic spray, cycle spray zero self-selection
_{Control accuracy}	Temperature deviation: soil 2.0°C; Temperature deviation: ≤+2-3%R.H when ≥75R.H; Humidity deviation: <75%R.H时≤土5%R.H;
Box material	Titanium plate inside, stainless steel plate outside painted
Cooling method	Water cooling

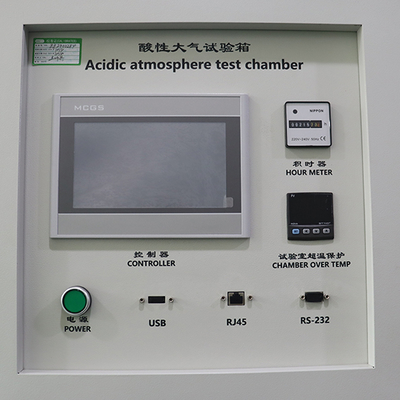

Control system	Siemens PLC + Siemens temperature module + human-machine interface
Power supply conditions	AC380V 50Hz (60Hz customized) three-phase four-wire + protective grounding

Meet the standards for testing methods and equipment execution

01. DO160E/F/G

02. ISO14993-2001

03. ISO16151:2005

04. GJB150.11A-2009

05. IEC60068-2-11:1981

06. IEC60068-2-52:1996

07. IEC6008-2-78-2001

08. IS09227-2006

09. ASTM B117, ASTM B368

10. GB/T10587-2006

11. GB/T10586-2006

12. GB/T5170.8-2008

Certifications

Company Profile

Workshop Strength

Invention Patent

FAQ

1. Who are we?
Dongguan Zhongzhi Times Test Equipment Co., Ltd., a subsidiary of Guangdong Zhognzhi Testing Instruments Co., Ltd., was founded in 2005, with 1,2000m² production area and 60+ employees, a leading high-tech enterprise specializing in environmental simulation testing chambers manufacture.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final double inspection before shipment;

3. What can you buy from us?
Salt Spray Test Machine,Rain Test Equipment,Temperature Humidity Test Machine, UV&Xenon Test Equipent, Universal Test Machine. High and low temperature testing chamber, constant temperature and humidity test chamber, etc.

4. Why should you buy from us not from other suppliers?
20+ years test equipment source manufacturer; Reliable quality,one equipment can use over 11+years; 24 hours after-sales online; Various types of different testing equipments.

5. What services can we provide?
Accepted Delivery Terms: FOB, DDP, DDU, CFR, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, Cash;
Language Spoken: English, Chinese, French
