Name: CZ-UV-1C Ultraviolet test Machine/UV Aging Durability test Chamber/ UV Accelerated Weathering Chamber with UV Lights for Tlc
Brand: Dongguan Zhongzhi Times Test Equipment Co., Ltd.
Availability: InStock

Home Products Hot Sale

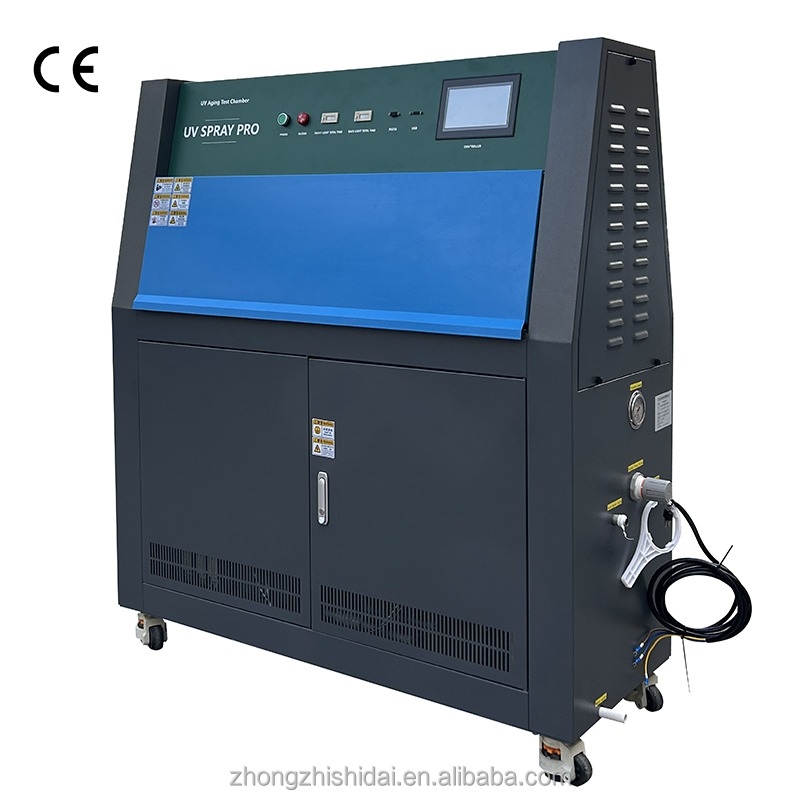

CZ-UV-1C Ultraviolet test Machine/UV Aging Durability test Chamber/ UV Accelerated Weathering Chamber with UV Lights for Tlc

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZHONGZHI

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	5.6 KW	Accuracy:	Temperature Resolution: 0.01 ℃
Voltage:	220V	Type:	/
Protection Class:	/	Product Name:	UV Accelerated Aging Test Machine
Light Temperature:	50~70℃	Condensation:	RT~ 60℃
Humidity Range:	Condensation Period 85% RH;irradiation Period 75% RH	Light Sourse:	UV-A/UV-B
Material:	Stainless Steel, Cold-rolled Steel Plate Baked Paint	Nozzle Quantity:	Equip 4 Pcs On The Front And Back,total 8pcs
Spray Pressure:	30 ~ 200 Kpa ,adjustable	Power Supply:	AC220V
Power:	Electronic

Products Description

Product Introduction

This product uses a fluorescent ultraviolet lamp that can best simulate the UV spectrum in sunlight, and combines temperature control, humidity supply and other devices to simulate the factors such as high temperature, high humidity, condensation, black and dark cycles caused by sunlight (UV segment) that can cause color change, brightness and intensity reduction, cracking, peeling, powdering, oxidation and other damage to the material. At the same time, the synergistic effect between ultraviolet light and moisture weakens or fails the material's single light resistance or single moisture resistance, making it widely used for evaluating the material's weather resistance performance.

Specification

Model	CZ-UV-1C	Customize according to requirements
Internal dimensions WxHxD (mm)	50x130x148
Internal dimensions WxHxD (mm)	450x1100x500
General standards	GB/T16422.3 GB/T5170.9
Temperature range	Room temperature RT+1.0℃~+70℃
Temperature fluctuation	≤+0.5°C
Humidity range	95%~100%RH
Ambient temperature	+5°C~+35°C
Test light source	UV-A/B UV-A/B
Test light source wavelength	280~400nm
Sample rack dimensions	150x75x1.5mm
Distance between sample and lamp center	50mm±2mm
Distance between lamps and lamp centers	70mm+2mm
Heating humidifier	Electric steam heating and humidification
Operation interface	Digital intelligent touch key input (programmable)
Operation mode	Programmable/constant operation
Setting range	According to temperature range
Input	Blackboard thermometer, PT-100 sensor
Auxiliary functions	Upper and lower limit alarm, alarm display, timer function
Standard configuration	28 stainless steel sample racks
Safety device	Leakage protection, overload power-off protection, over-temperature protection, water shortage, grounding protection
Power supply	220V+10%50Hz
Power (kW)	3

Test standards

GBT16422.1-2006/ISO4892-1:1999 General principles for laboratory light source exposure test methods for plastics GB/T16422.3-2014/ISO4892-3:2006 Laboratory light source exposure test methods for plastics Part 2: Gas arc lamp

GB/T23987-2009/ISO11507:2007 Artificial weathering exposure (UV) of paint and varnish coatings GB/T9535-2006/IEC61215:2005 Terrestrial crystalline silicon photovoltaic modules - Design identification and

finalization (10.10 UV pretreatment test part)

GBIT14522-2008 Artificial weathering test methods for plastics, coatings and rubber materials for

mechanical industrial products Fluorescent ultraviolet lamp ASTMG154-2006

ASTMG153

Serial No.	Accessory name	Brand	Quantity
1	Program controller	Zhongzhi	1 unit
2	Light intensity meter	Beijing Normal University	1 set
3	Test box	Self-made	1 unit
4	Test sample rack	Self-made	1 set
5	Ultraviolet lamp	Atlas, USA	8 units
6	Dimmable ballast	Philips	4 units
7	Cooling fan	SUNON	2 units
8	Heating blower	Yutian	1 unit
9	Thermal limiter	Rainbow, Korea	3 units
10	Irradiation heating tube	Ved	1 unit
11	Condensation heating tube	Ved	2 units
12	Spraying device	Self-made	1 set
13	Spraying water pump	Lingxiao Pumps	1 unit
14	Solid state relay	Swiss Carlo Gavazzi	2 sets
15	AC contactor	Schneider	2 units
16	Intermediate relay	Japan OMRON	6 units
17	Lighted self-locking switch	Siemens	2 units
18	Temperature sensor	USA 0mega	3 units
19	Spraying pressure regulating valve	Airtac	1 unit
20	Spraying pressure gauge	Hongqi	1 unit
21	Solenoid valve	Airtac	2 units
22	Liquid level switch	Fanyi	3 units
23	Timer	Dahua	2 units
24	Water tank	Self-made	1 unit
25	Others	Domestic high quality	1 unit
