Name: CZ-60B Promotion Automated Corrosion Digital Salt Fog Machine Programmable Salt Spray Tester
Brand: Dongguan Zhongzhi Times Test Equipment Co., Ltd.
SKU: CZ-60B
Availability: InStock

Home Products Corrosion resistance testing machine

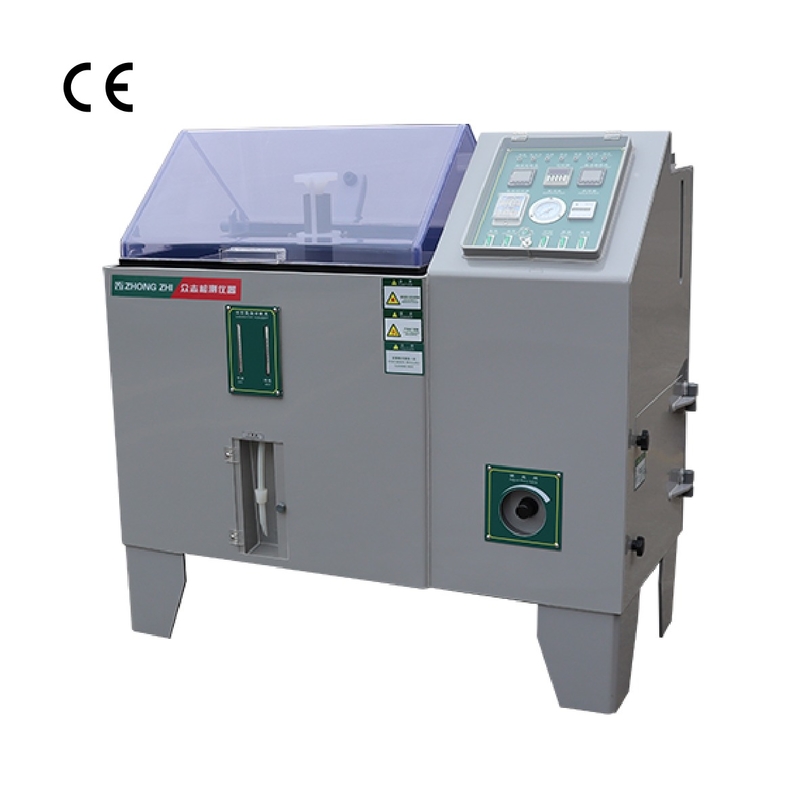

CZ-60B Promotion Automated Corrosion Digital Salt Fog Machine Programmable Salt Spray Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZHONGZHI
Model Number:	CZ-60B

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	2.2KW	Voltage:	220V
Type:	/	Product Name:	Programmable Salt Spray Test Machine
Internal Dimension:	60x40x45	External Dimension:	116x110x60
Laboratory Temperature:	Salt Water Test (NSS ACSS)35℃±1℃	Pressure Barrel Temperature:	Salt Water Test (NSS ACSS)47℃±1℃
Laboratory Capacity:	108L	Salt Tank Capacity:	15L
Spray Pressure:	70-170Kpa	Spray Rate:	1-2ml/(h-80cm²)
Ph Number:	6.5-7.23.0-3.2

Products Description

Product Introduction

TThis equipment is mainly used to detect discontinuities such as pores or other defects in metals and their alloys, metal coatings, organic coatings, anodized films and conversion films. The chamber heating of this salt spray machine adopts thermal radiation heating to maintain the required temperature of the test space, thereby ensuring the accuracy of the test. Zhongzhi salt spray chamber type B series can complete many accelerated corrosion tests. The type B salt spray chamber is our most economical model, which can perform continuous salt spray tests or intermittent spray tests.

Specification

Model	CZ-60B	CZ-90B	CZ-120B	CZ-160B	CZ-200B
Internal dimensions (cm)	60x40x45	90x50x60	120x50x80	160x50x100	200x60x120
External dimensions (cm)	116x110x60	145x120x88	208x133x125	247x132x145	287x141x165
_{Temperature range of lab}	Saltwater test method (NSS ACSS) 35 ° C ± 1 ° C/Corrosion resistance test method (CASS) 50 ° C ± 1 ° C
_{Pressure bucket temp range}	Saltwater test method (NSS ACSS) 47 ° C ± 1 ° C/Corrosion resistance test method (CASS) 63 ° C ± 1 ° C
Test box capacity	108L	270L	480L	800L	1440L
Salt water tank capacity	15L	25L	40L	40L	40L
_{Salt water concentration}	Sodium chloride solution concentration 5% or sodium chloride solution concentration 5% with 0.26 g of copper chloride (CuCl2 2H2O)added per liter
Compressed air pressure	70~170Kpa
Spray volume	1~2ml/(h · 80cm2) (Collect for at least 16 hours and take the average)
Relative humidity in the lab	Over 85%
PH value	6.5~7.2 3.0~3.2
Spray method	Programmable spray (including continuous spray and intermittent spray)
Power Supply	AC220V1Φ10A			AC220V1Φ20A		AC220V1Φ25A

Meet the standards for testing methods and equipment execution

ASTM B117 Salt spray test

GB/T2423.17/IEC60068-2-11 Salt spray test method

JIS H8502 Corrosion resistance test method for coatings

GB/T10125-2021/ISO9227-2017 Salt water spray test method

GJB150.11A-2009 Environmental test methods for military equipment lab-Salt spray test

GB/T20121-2006/ISO11474-1998 Corrosion of metals and alloys - Corrosion test in artificial atmospheres outdoor accelerated tests under intermittent salt spray - Scar test

Certifications

Company Profile

Workshop Strength

Invention Patent

Packaging & Shipping

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

FAQ

1. Who are we?
Dongguan Zhongzhi Times Test Equipment Co., Ltd., a subsidiary of Guangdong Zhognzhi Testing Instruments Co., Ltd., was founded in 2005, with 1,2000m² production area and 60+ employees, a leading high-tech enterprise specializing in environmental simulation testing chambers manufacture.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final double inspection before shipment;

3. What can you buy from us?
Salt Spray Test Machine,Rain Test Equipment,Temperature Humidity Test Machine, UV&Xenon Test Equipent, Universal Test Machine. High and low temperature testing chamber, constant temperature and humidity test chamber, etc.

4. Why should you buy from us not from other suppliers?
20+ years test equipment source manufacturer; Reliable quality,one equipment can use over 11+years; 24 hours after-sales online; Various types of different testing equipments.

5. What services can we provide?
Accepted Delivery Terms: FOB, DDP, DDU, CFR, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, Cash;
Language Spoken: English, Chinese, French
