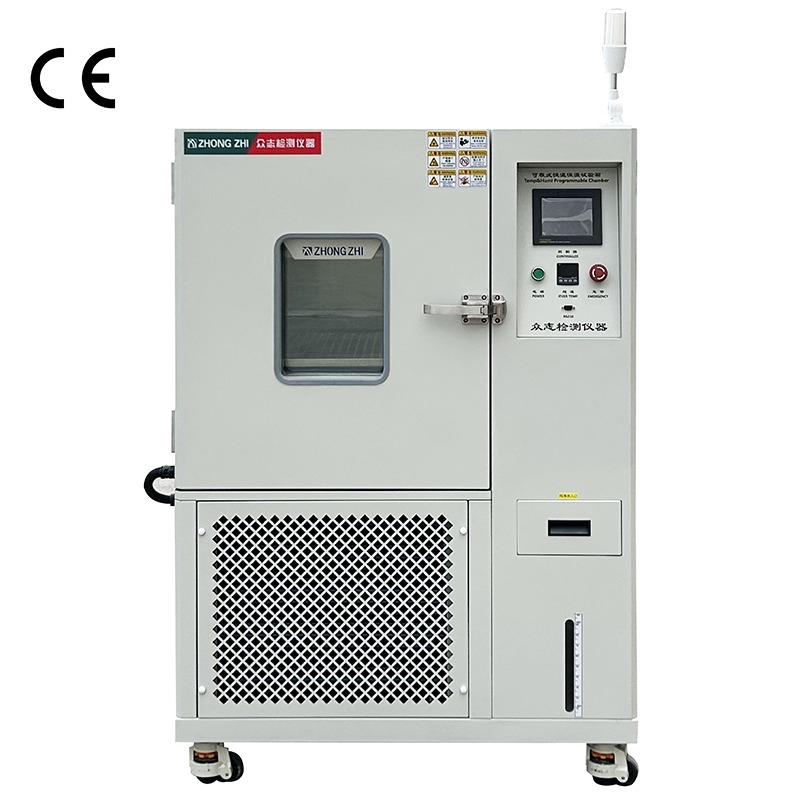

Name: CZ-A-150D High Stability Climate Temperature and Humidity Lab Constant Climatic Environmental Chamber with Humidity Control
Brand: Dongguan Zhongzhi Times Test Equipment Co., Ltd.
Availability: InStock

Home Products Hot Sale

CZ-A-150D High Stability Climate Temperature and Humidity Lab Constant Climatic Environmental Chamber with Humidity Control

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZHONGZHI

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	14.5Kw	Accuracy:	Temperature Deviation ≤± 2.0 ℃
Voltage:	380V	Type:	/
Application:	Auto Testing, Plastic Testing, Paper Testing, Leather Testing, Process Testing, Laboratory Testing, Lab Testing, Electrical Testing	Protection Class:	/
Product Name:	Programmable Temperature & Humidity Test Chamber	Temperature Range:	-70℃~+150℃
Humidity Range:	20~98%R.H	Temperature Resolution:	0.01℃
Humidity Resolution:	0.1%R.H	Temperature Uniformity:	±1.0℃
Humidity Uniformity:	±3.0%R.H	Temperature Accuracy:	±1.0℃
Humidity Accuracy:	±2.0%R.H	Heating Speed:	Linear/uniformly 2~15℃/min

Products Description

Product Introduction

This series of programmable constant temperature and humidity testers are also known as high temperature and humidity alternating testers or constant temperature baths. They are mainly used to simulate the harsh high temperature or humidity environment that electronic instruments, new materials, electrical engineering, vehicles, metals, electronic products, aerospace materials, etc. may encounter during transportation, storage, and use; or to test the high temperature and humidity resistance of materials, accessories, or instruments and equipment in a high temperature and humidity alternating environment, as well as the possible damage and shortened lifespan.

Product Features

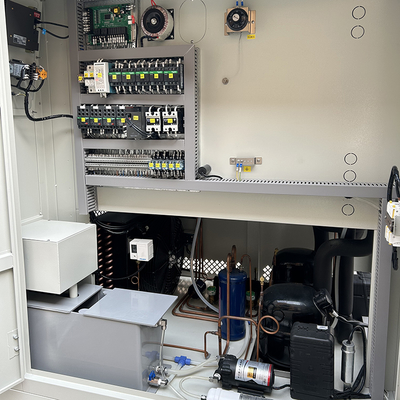

The test chamber consists of two parts: the main heat preservation box and the independent refrigeration unit.

The outer box is made of high-quality anti-corrosion electrolytic plate, and the surface is electrostatic powder painted, which is beautiful and generous;

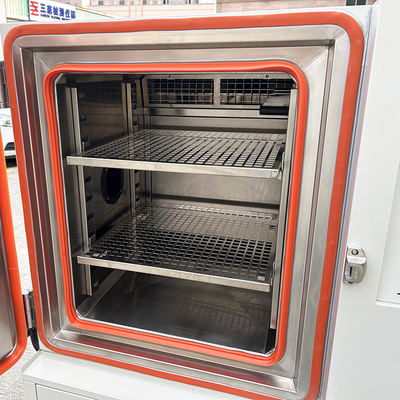

the inner box is made of SUS304 stainless steel plate, and the inner wall is treated to ensure the insulation of the inner tank and safe use;

the multi-layer vacuum glass observation window, with electronic defogging film heating and sweat prevention, is convenient for viewing the test, and the refrigeration system adopts independent cold end and hot end PID adjustment;

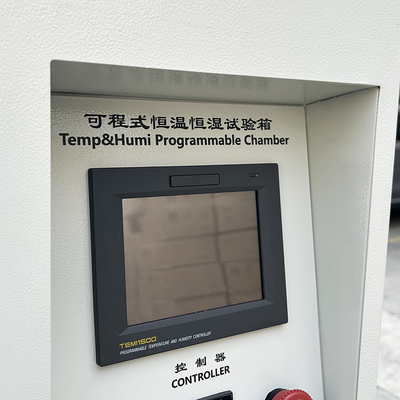

it avoids the energy waste caused by the hedging of cooling capacity and heating capacity, and effectively saves electricity bills. The compressor adopts imported brands and comes with PTC temperature sensor. When the compressor is over-temperature, it can realize over-temperature protection. The direct color LCD clock-type PLC architecture controller, multiple groups of intelligent PD control: the fixed value operation time setting can reach 999999h59m;

7-inch resolution: 800480, 65535 color, LED backlight display screen, test curve screen display, can be connected to the computer to display the curve, data acquisition;

can be used as a monitoring and remote control system; can be used for multiple machines synchronous control.

Specification

Model	CZ-A-80	CZ-A-150	CZ-A-408	CZ-A-608	CZ-A-1000
Inner size（mm）	400x500x400	500x600x500	600x850x800	800x950x800	1000x1000x1000
Outer size（mm）	900x1583x1106	1000x1683x12006	800x1939x1828	1000x2049x1828	1200x2099x2028

Temperature range	-70°C~+180°C
Humidity range	20%~98%R.H. (10%-98%R.H/5%~98%R.H is a special selection condition)
Analysis accuracy/uniformity	0.01°C
Control accuracy/fluctuation	+1.0°C;+0.5°C
Heating/cooling time	About 3.0°C/minute; About 1.0C/minute (2C~15C drop per minute or more is a special selection condition)
Internal and external materials	Cold-rolled steel plate painted, inner box SUS 304# stainless steel plate
Insulation materials	High temperature resistant high density polyacetamide rigid foam insulation material
Cooling system	Air-cooled/single-stage compressor (-20°C), air and water-cooled/two-stage compressor (-40°C~-70°C)
Protective device	No fuse switch, compressor overload protection switch, refrigerant high and low voltage protection switch, over-humidity and over-temperature protection switch, fuse, fault warning system
Accessories	Recorder (optional), viewing window, 50mm test hole, PL box light, partition, dry and wet ball gauze
Controller	Korean brand or customized optional
Compressor	French "Tai-kang" brand
Power supply	1 medium 220VAC+10%50/60Hz & 3 medium 380VAC+10%50/60HZ

Meet the standards for testing methods and equipment execution

GB/T 2423.1-2008/IEC6008-2-1-2007 Low temperature test method
GB/T 2423.2-2008 High temperature test method
GJB 150.3A-2009 High temperature test method
GJB 150.4A-2009 Low temperature test method
GB/T 2423.22-2008 Temperature change rate test method
GB/T 2424.5-2006 Temperature test chamber performance confirmation
GB/T 10589-2008 Low temperature test chamber technical conditions
GB/T 2423.3-2008(IEC68-2-3) Constant humidity test method
GJB 150.9A-2009 Humidity test method
GB/T 2423.4-2008/IEC6008-2-30:2005 Alternating humidity method
GB/T 5170.18-2005 Temperature/humidity combination cycle test equipment calibration method
GB/T 10586-2006 Humidity and heat test chamber technical conditions
GB/T 2424.6-2006 Temperature/humidity test chamber performance confirmation
GB/T 2424.7-2006 Measurement of temperature test chamber (with load)

Serial number	Accessory name	Brand	Quantity
1	Test chamber	Homemade	1 unit
2	Circulation motor	Yutian	1 unit
3	Refrigeration compressor	Taikang France	2 units
4	Condenser	Keweili/Taizhiyuan	1 unit
5	Evaporator	Keweili/Yongqiang	1 unit
6	Oil separator	Emerson	1 unit
7	High-voltage switch	Saginomiya	2 pieces
8	Dryer	Danfoss	1 piece
9	Refrigerant solenoid valve	Saginomiya	4 pieces
10	Heat exchanger	Halley	1 unit
11	R23 refrigerant	DuPont	2kg
12	R404a refrigerant	DuPont	3kg
13	Controller	Samwon	1 unit
14	Temperature sensor	Songqi	2 pieces
15	Leakage circuit breaker	Schneider	1 piece
16	Contactor	Schneider	4 pieces
17	Heater	Vedek	1 set
18	Humidifier	Vedek	1 set
19	Thermal overload relay	Schneider	1 batch
20	Thermal limiter	Rainbow	2 pieces
21	Solid-state relay	Swiss Carlo	2 sets
22	Relay	Omron	1 batch
23	Three-color lamp	Owen	1 piece
24	Transformer	High-quality domestic products	1 unit
25	Lighting lamp	Philips	1 lamp
26	Cable	Botte/Minxing	1 batch
27	Other	High-quality domestic products	1 batch

Certifications

Company Profile

Workshop Strength

Invention Patent

Packaging & Shipping

Packing: 1. Out packing:Standard export wooden case. 2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners. 3. Checking teams: Specialized staff to inspect and classified your goods. Shipping: You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.

FAQ

1. Who are we?
Dongguan Zhongzhi Times Test Equipment Co., Ltd., a subsidiary of Guangdong Zhognzhi Testing Instruments Co., Ltd., was founded in 2005, with 1,2000m² production area and 60+ employees, a leading high-tech enterprise specializing in environmental simulation testing chambers manufacture.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final double inspection before shipment;

3. What can you buy from us?
Salt Spray Test Machine,Rain Test Equipment,Temperature Humidity Test Machine, UV&Xenon Test Equipent, Universal Test Machine. High and low temperature testing chamber, constant temperature and humidity test chamber, etc.

4. Why should you buy from us not from other suppliers?
20+ years test equipment source manufacturer; Reliable quality,one equipment can use over 11+years; 24 hours after-sales online; Various types of different testing equipments.

5. What services can we provide?
Accepted Delivery Terms: FOB, DDP, DDU, CFR, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, Cash;
Language Spoken: English, Chinese, French
