Name: CZ-1000XD ISO4892 Environmental Xenon Lamp Accelerated Climate Test Machine Chamber for Paints and Coating
Brand: Dongguan Zhongzhi Times Test Equipment Co., Ltd.
Availability: InStock

Home Products Hot Sale

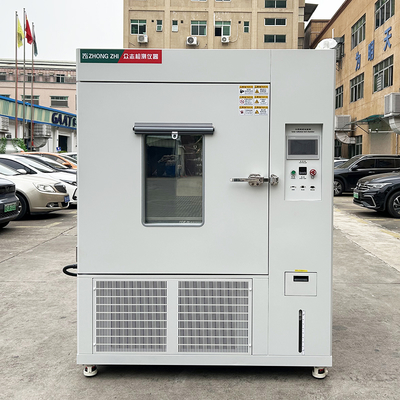

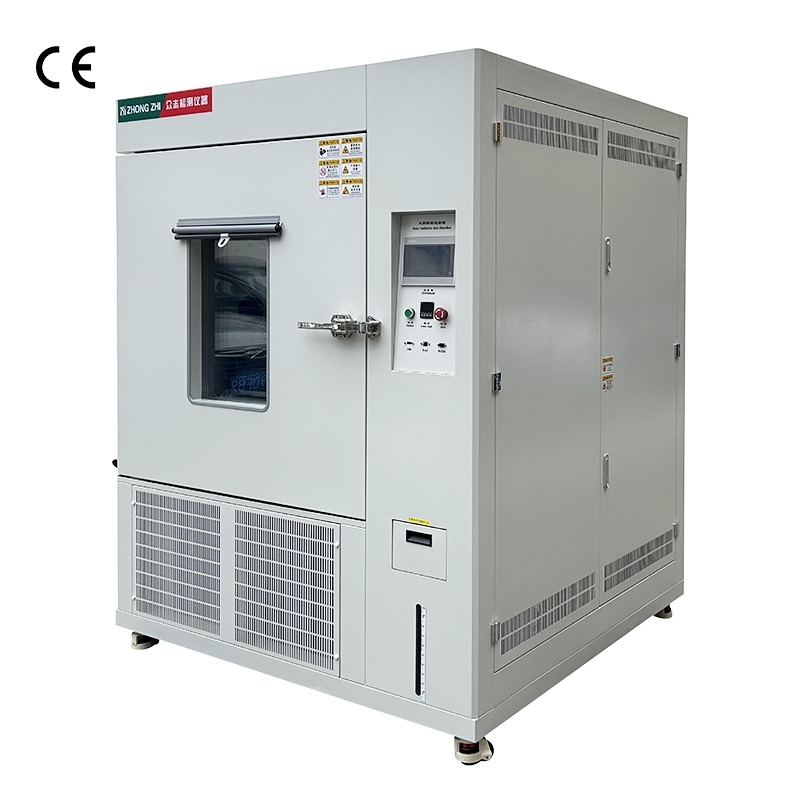

CZ-1000XD ISO4892 Environmental Xenon Lamp Accelerated Climate Test Machine Chamber for Paints and Coating

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZHONGZHI

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	20.6	Accuracy:	Irradiance Control Accuracy ±5%
Voltage:	380V	Type:	Hardness Tester
Application:	Auto Testing, Plastic Testing, Textile Testing, Strength Testing, Leather Testing, Electrical Testing, Lab Testing, Laboratory Testing	Protection Class:	/
Product Name:	Aging Tester Xenon Lamp Testing Machine	Internal Size:	100010001000
Outer Size:	150019501600	Inner Capacity:	769.5L
Test Lab Temperature:	RT~100℃	Radiation/blackboard Temperature:	40~110℃
Temperature Resolution Ratio:	0.01℃	Humidity Resolution Ratio:	0.1%R.H
Environment Temperature Deviation:	±3℃	Blackboard Temperature Deviation:	±3℃

Products Description

Product Introduction

It is mainly used to simulate the accelerated aging test of materials under comprehensive environmental conditions such as sunlight outdoors or through window glass, high temperature, humidity, and rain, and to test the degree of influence on the physical, chemical and optical properties of materials.

Specification

Model	CZ-1000XD	CZ-UV-1000XD(340nm)	CZ-UV-1000XD(340/420nm)
Workroom size (mm)	1000x1000x1000	1000x1000x1000	1000x1000x1000
External size (mm)	1500x1950x1600	1500x1950x1600	1500x1950x1600
Box material	Inner box is made of SU304 stainless steel, outer box is made of cold rolled steel plate with baking varnish
Test room temperature range	RT+10°C~100°C
Blackboard temperature range	40°C~110°C
Humidity range	30%~60%R.H in irradiation, 20%R.H~98%R.H in darkness
Irradiation intensity	500~1200W/m(300~2450nm)	0.3W/m2~1.2W/m340nm)	0.3W/m2_1.2W/m2(340nm0.5W/m2~1.5W/m%(420nm)
Lamp cooling method	Air cooling	Water cooling	Water cooling
External filter	Borosilicate glass filter	Borosilicate glass filter	Borosilicate glass filter / soda glass filter
Internal filter	Borosilicate glass filter
Test bench	Dynamic rotating test bench made of SUS304# stainless steel, with adjustable speed of 1~7r/min
Test specimen size	50mmx150mm (WxH) per piece, each sample rack can hold 2 samples, a total of 30 sample racks (standard)
Spray water pressure	30~200Kpa
Nozzle specifications	Aperture 0.8mm, spray angle 60°, spray volume adjustable
Control accuracy	Temperature resolution: 0.01°C; Humidity resolution: 0.1%R.H; Test area temperature deviation: 3°C; Humidity deviation: 3%R.H; Blackboard temperature deviation: ±3°C; Irradiation intensity deviation: 10%W/m".
Water supply method	Automatic/manual dual water supply mode The equipment comes with a small pure water filter to supply water	Automatic/manual dual water supply mode, the equipment comes with ultrapure water machine and water chiller
Equipment power supply and power	AC380V three-phase four-wire + protective grounding: voltage fluctuation range is ±10%V, power is 15.6KW	AC380V three-phase four-wire + protective grounding: voltage fluctuation range is ±10%V, power is 20.6KW

Test standards

1）GBT 2423.24-2013/IEC 60068-2-5: 2010 2）GBT164222-2014/ISO4892-2:2006

3）GBT164221-2006/ISO4892-1:1999 4）GB-T1865-2009/IS011341:2004 5）GB/T35 11-2008/ISO4665:1998 6）GBT24234-2008/IEC6008-2-30:2005 7）GB/T10586-2006 8）GBT5170.9-2008

9）GJB1507A-2009

Main spare parts list

Serial No.	Accessory Name	Brand	Quantity
1	Test chamber	Homemade	1 unit
2	Sample rack	Homemade	1 piece
3	Lamp cooling fan	Yutian	1 unit
4	Circulation motor	Yutian	3 units
5	Compressor	Copeland/Taikang	1 unit
6	Condenser	Yongqiang/Aojia	1 unit
7	Condenser fan	Weiguang Motor	1 unit
8	Evaporator	Yongqiang/Xingyue	1 unit
9	Oil separator	Emerson	1 unit
10	High-voltage switch	Saginomiya	1 piece
11	Dryer	Emerson	1 piece
12	Refrigerant solenoid valve	Saginomiya/Castor	1 piece
13	Electronic expansion valve	Saginomiya/Sanhua	1 piece
14	R404a refrigerant	Juhua/Dupont	3kg
15	Controller	Zhongzhi	1 unit
16	Temperature sensor	US Omega	2 pieces
17	Light intensity sensor	Hash of the Netherlands	1 set
18	Humidity sensor	VAISALA of Finland	1 set
19	Long arc xenon lamp tube	Yuyu	6 pieces
20	Xenon lamp control power supply	Homemade	3 sets
21	Main power switch	Fuji of Japan	1 piece
22	Contactor	Schneider	6 pieces
23	Heating tube	Video	3 pieces
24	Thermal overload relay	Schneider	3 pieces
25	Temperature limiter	Rainbow of Korea	2 pieces
26	Solid state relay	Carlo Gavril	2 sets
27	Phase sequence protector	Carlo Gavril	1 piece
28	Relay	Omron	3 pieces
29	Others	Domestic high quality	1 batch

Certifications

Company Profile

Workshop Strength

Invention Patent

Packaging & Shipping

Packing: 1. Out packing:Standard export wooden case. 2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners. 3. Checking teams: Specialized staff to inspect and classified your goods. Shipping: You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.

FAQ

1. Who are we?
Dongguan Zhongzhi Times Test Equipment Co., Ltd., a subsidiary of Guangdong Zhognzhi Testing Instruments Co., Ltd., was founded in 2005, with 1,2000m² production area and 60+ employees, a leading high-tech enterprise specializing in environmental simulation testing chambers manufacture.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final double inspection before shipment;

3. What can you buy from us?
Salt Spray Test Machine,Rain Test Equipment,Temperature Humidity Test Machine, UV&Xenon Test Equipent, Universal Test Machine. High and low temperature testing chamber, constant temperature and humidity test chamber, etc.

4. Why should you buy from us not from other suppliers?
20+ years test equipment source manufacturer; Reliable quality,one equipment can use over 11+years; 24 hours after-sales online; Various types of different testing equipments.

5. What services can we provide?
Accepted Delivery Terms: FOB, DDP, DDU, CFR, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, Cash;
Language Spoken: English, Chinese, French
