Name: CZ-1000LY Stainless Steel Rain for Test Equipment Waterproof Rain Erosion Chamber Pressure Testing Machine for Watches
Brand: Dongguan Zhongzhi Times Test Equipment Co., Ltd.
Availability: InStock

Home Products Waterproof and dustproof testing machine

CZ-1000LY Stainless Steel Rain for Test Equipment Waterproof Rain Erosion Chamber Pressure Testing Machine for Watches

Product Details:

Contact Now

Detailed Product Description

保修期:	1年	支持定做:	OEM, ODM
原产地:	Guangdong, China	品牌:	Zhongzhi
功率:	5.6KW	精度:	/
电压:	380V	类型:	冲击试验机
应用:	自动测试, 实验室测试, 实验室测试, 电气测试, 水测试	防护等级:	IPX1 ~ IPX6
电源:	AC380V 50HZ 5.6kW, 电子	回转管圆弧半径 (mm):	R400
喷淋方式:	摆动管冲洗模式	摆动角度:	最大175 °
摆动控制方法:	人机界面 + PLC伺服控制摆管	内部容量:	1000L
内部尺寸 (mm):	1000x1000x1000	外部尺寸 (mm):	1500x1867x1300

Products Description

Product Introduction

The rain test is applicable to electrical and electronic products that may be exposed to rain during transportation, storage or use. The water comes from heavy rain, wind and rain, sprinkler system, wheel splashing, flushing or violent waves: to assess whether the seals of the housing and cover of the

electrical and electronic products can be guaranteed after or during the water test.

Product Features

1. Inner box material: SUS304# stainless steel, fully welded, moisture-proof, rust-proof and leakage-proof 2. Raindrop, spray and flush cycles can be freely set 3. Equipped with LED lighting and three-color alarm to ensure safety and convenience of operation 4. Simple operation and easy maintenance

Specification

Model	CZ-600LY	CZ-1000LY	CZ-2800LY	CZ- LY (Order type)
Circular radius of swinging tube (mm)	R200	R400	R600	R800/R1000/R1200/R1400/R1600
Structural form	Overall structure
IPX3/IPX4 nozzle aperture and spray volume	Aperture 0.4mm, spray volume 0.07L/min/nozzle
IPX4K nozzle aperture and spray volume	Aperture 0.8mm, spray volume 0.6 L/min/nozzle
Spraying method	Swing pipe flushing mode
Swing angle	Swing from the center point to the left and right sides up to 175°, a total of 350°; the angle can be set arbitrarily within this range

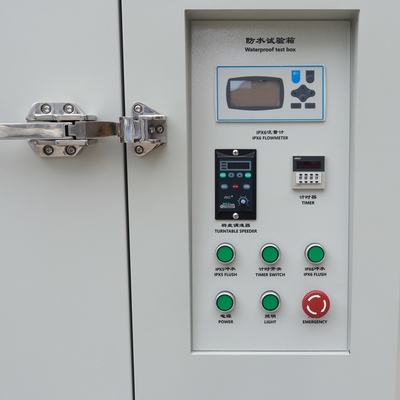

Swing pipe control method	Human-machine interface + PLC control private server drag swing pipe for water spray test
Spray pipe swing speed	1~60°/S adjustable

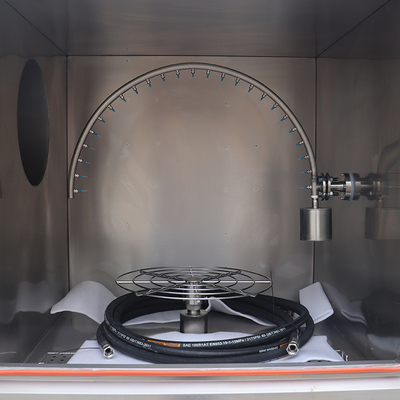

_{Nozzle arrangement}	IPX3 on the 60° arc on both sides of the vertical plane, the center spacing between the nozzles is 50mm (the plug seals the bottom nozzle to achieve) IPX4/IPX4K on the 90° arc on both sides of the vertical plane, the center spacing between the nozzles is 50mm
_{Test turntable}	1~10r/min stepless speed regulation can be set and displayed on the human-machine interface
Test turntable load	<100kg
Spraying time	1S~999X10H adjustable
Equipment power and power supply	AC220V, 50Hz/(60Hz customized) 22KW

Meet the standards for testing methods and equipment execution

GB/T2423.38-2006/IEC60068-218:2000 Water test Ra, Rb part

GB4208-2008/IEC60529-2001 Enclosure protection level IPX1~IPX6

DIN_40050-9 Waterproof test IPX3/IPX4/IPX4K
