保修期: | 1年 | 支持定做: | OEM, ODM |
---|---|---|---|
原产地: | Guangdong, China | 品牌: | ZHONGZHI |
型号: | CZ-1000LY-9K | 功率: | Electronic |
产品名称: | 淋雨喷雾试验机 | 内部尺寸: | 1000*1000*1000 |
外部尺寸: | 1650*1900*1200 | 喷雾速率: | 14 ~ 16L/min |
喷水温度: | 普通水 | 喷雾压力: | 80 ~ 100bar(8 ~ 10Mpa) |
喷嘴角度布置: | 0 ° 、30 ° 、60 ° 、90 ° | 喷嘴距离试样 (mm): | 100 ~ 150 |
喷雾法: | 0 °,30 °,60 °,90 ° 每个角度周期可调 | 测试转盘: | 根据形状和尺寸制作测试夹具 |
item | value |
Warranty | 1 Year |
Customized support | OEM, ODM |
Place of Origin | China |
Guangdong | |
Brand Name | ZHONGZHI |
Model Number | CZ-1000LY-9K |
Power | Electronic |
Product name | Rain spray test machine |
Internal dimension | 1000*1000*1000 |
External dimension | 1650*1900*1200 |
Spray rate | 14~16L/min |
Spray water temperature | normal water |
Spray pressure | 80~100bar(8~10Mpa) |
Nozzle Angle arrangement | 0°,30°,60°,90° |
Nozzle distance sample (mm) | 100~150 |
Spray method | 0°, 30°, 60°, 90° each Angle period can be adjusted |

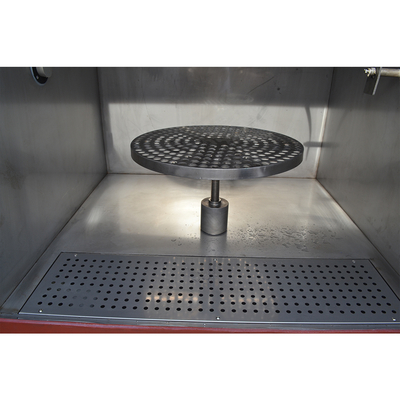

Test turntable | Make test fixture according to shape and size |
