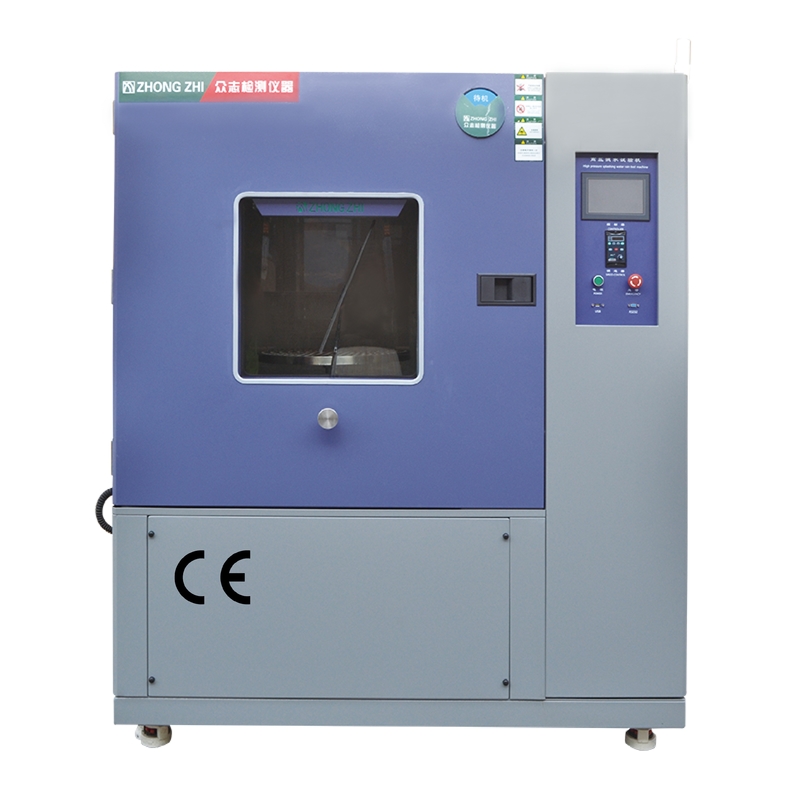

CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts

CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts

  • CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts
  • CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts
  • CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts
  • CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts
  • CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts
  • CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts
  • CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts
CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts
Product Details:
Contact Now
Detailed Product Description
保修期: 1年 支持定做: OEM, ODM
原产地: Guangdong, China 品牌: ZHONGZHI
型号: CZ-1000LY-9K 功率: 36.8KW
电压: 380V 类型: /
产品名称: 淋雨喷雾试验机 内部尺寸: 1000*1000*1000
外部尺寸: 1650*1900*1200 喷雾速率: 14 ~ 16L/min
喷水温度: 普通水 喷雾压力: 80 ~ 100bar(8 ~ 10Mpa)
喷嘴角度布置: 0 ° 、30 ° 、60 ° 、90 ° 喷嘴距离试样 (mm): 100 ~ 150
喷雾法: 0 °，30 °，60 °，90 ° 每个角度周期可调 测试转盘: 根据形状和尺寸制作测试夹具

Products Description
CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts 0

Product Introduction

The rain test is applicable to electrical and electronic products that may be exposed to rain during transportation, storage or use. The water comes from heavy rain, wind and rain, sprinkler system, wheel splashing, flushing or violent waves: to assess whether the seals of the housing and cover of the
electrical and electronic products can be guaranteed after or during the water test.

Product Features

1. Inner box material: SUS304# stainless steel 2.0mm thick 2. Outer box material: cold-rolled steel plate 1.2mm thick painted (optional SUS304# stainless steel thickness 1.0mm) 3. Box insulation material: insulation material is high temperature resistant board, box insulation material thickness: 30 mm 4. Spray water is recycled to achieve the purpose of water conservation 5. Install a leakage circuit breaker behind the equipment to cut off the power supply of the equipment during maintenance or when the equipment has leakage or overload, which is safe and reliable
Specification
Model
CZ-1000LY-9K
Inner box dimensions (mm)
1000x1000x1000 W X H X D
Water temperature range
RT~±90℃
Spraying volume
14~16L/min
Spraying pressure
80~100bar(8~10Mpa)

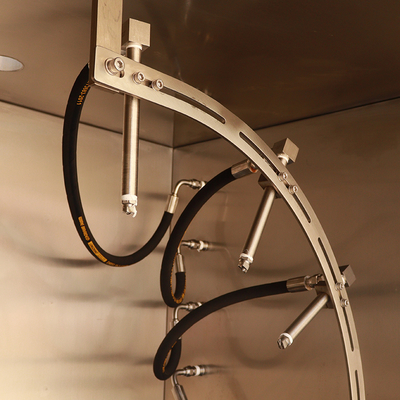

Nozzle angle arrangement
0°，30°, 60°, 90°
Nozzle distance to sample (mm)
100~150
Spraying method
0°, 30°, 60°, 90°, each angle spray time and spray cycle are adjustable
Test turntable
Speed ​​1~10±1r/min, load ≤100kg; diameter φ500mm, height adjustable
Test sample fixing (optional)
The test sample fixture can be customized according to the shape and size of the product (the customer needs to provide detailed size drawings or actual objects of the sample)

Meet the standards for testing methods and equipment execution


DIN40050-9

CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts 2
CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts 4
CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts 6
CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts 8
Certifications
CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts 10
Company Profile
CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts 12
CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts 14
Workshop Strength
CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts 16
CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts 18
Invention Patent
CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts 20
CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts 22
Packaging & Shipping
CZ-1000LY-9K IP9K Blowing Rain Comprehensive Test Chamber Apparatus Machine Full Set for Phone and Car Parts 24
Packing: 1. Out packing:Standard export wooden case. 2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners. 3. Checking teams: Specialized staff to inspect and classified your goods. Shipping: You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
FAQ
1. Who are we?
Dongguan Zhongzhi Times Test Equipment Co., Ltd., a subsidiary of Guangdong Zhognzhi Testing Instruments Co., Ltd., was founded in 2005, with 1,2000m² production area and 60+ employees, a leading high-tech enterprise specializing in environmental simulation testing chambers manufacture.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final double inspection before shipment;

3. What can you buy from us?
Salt Spray Test Machine,Rain Test Equipment,Temperature Humidity Test Machine, UV&Xenon Test Equipent, Universal Test Machine. High and low temperature testing chamber, constant temperature and humidity test chamber, etc.

4. Why should you buy from us not from other suppliers?
20+ years test equipment source manufacturer; Reliable quality,one equipment can use over 11+years; 24 hours after-sales online; Various types of different testing equipments.

5. What services can we provide?
Accepted Delivery Terms: FOB, DDP, DDU, CFR, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, Cash;
Language Spoken: English, Chinese, French
