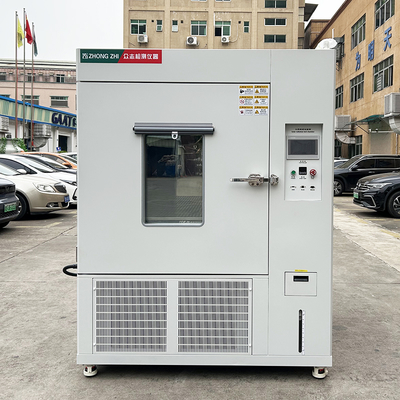

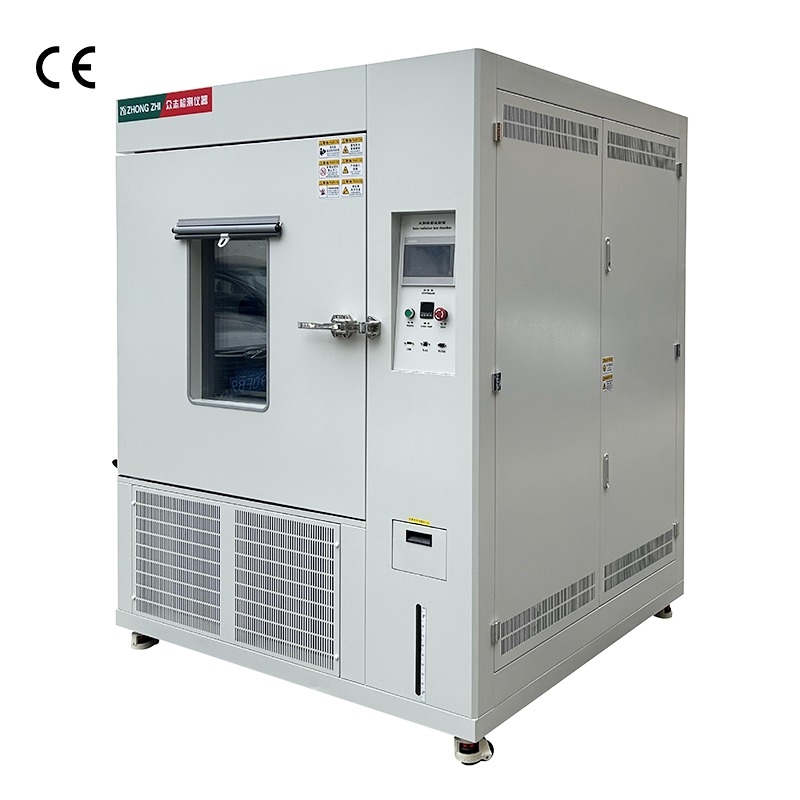

Name: CZ-1000XD ISO 4892-2 4892-1 IEC 60068 Simulated Sunlight Xenon Arc Lamp Accelerated Aging Test
Brand: Dongguan Zhongzhi Times Test Equipment Co., Ltd.
Availability: InStock

Home Products Aging testing machine

CZ-1000XD ISO 4892-2 4892-1 IEC 60068 Simulated Sunlight Xenon Arc Lamp Accelerated Aging Test

Product Details:

Contact Now

Detailed Product Description

保修期:	1年	支持定做:	OEM, ODM
原产地:	Guangdong, China	品牌:	ZHONGZHI
功率:	20.6	精度:	辐照度控制精度 ± 5%
电压:	380V	类型:	硬度计
应用:	自动测试, 塑料测试, 纺织品测试, 强度试验, 皮革测试, 电气测试, 实验室测试, 实验室测试	防护等级:	/
产品名称:	老化测试仪氙灯试验机	内部尺寸:	100010001000
外部尺寸:	150019501600	内部容量:	769.5L
测试实验室温度:	RT ~ 100 ℃	辐射/黑板温度:	40 ~ 110 ℃
温度分辨率:	0.01 ℃	湿度分辨率:	0.1% R.H
环境温度偏差:	± 3 ℃	黑板温度偏差:	± 3 ℃

Products Description

Product Introduction

It is mainly used to simulate the accelerated aging test of materials under comprehensive environmental conditions such as sunlight outdoors or through window glass, high temperature, humidity, and rain, and to test the degree of influence on the physical, chemical and optical properties of materials.

Specification

Model	CZ-1000XD	CZ-UV-1000XD(340nm)	CZ-UV-1000XD(340/420nm)
Workroom size (mm)	1000x1000x1000	1000x1000x1000	1000x1000x1000
External size (mm)	1500x1950x1600	1500x1950x1600	1500x1950x1600
Box material	Inner box is made of SU304 stainless steel, outer box is made of cold rolled steel plate with baking varnish
Test room temperature range	RT+10°C~100°C
Blackboard temperature range	40°C~110°C
Humidity range	30%~60%R.H in irradiation, 20%R.H~98%R.H in darkness
Irradiation intensity	500~1200W/m(300~2450nm)	0.3W/m2~1.2W/m340nm)	0.3W/m2_1.2W/m2(340nm0.5W/m2~1.5W/m%(420nm)
Lamp cooling method	Air cooling	Water cooling	Water cooling
External filter	Borosilicate glass filter	Borosilicate glass filter	Borosilicate glass filter / soda glass filter
Internal filter	Borosilicate glass filter

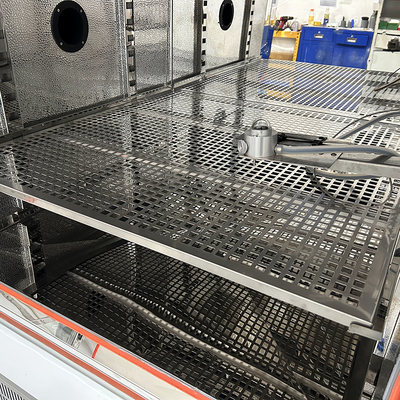

Test bench	Dynamic rotating test bench made of SUS304# stainless steel, with adjustable speed of 1~7r/min
Test specimen size	50mmx150mm (WxH) per piece, each sample rack can hold 2 samples, a total of 30 sample racks (standard)
Spray water pressure	30~200Kpa
Nozzle specifications	Aperture 0.8mm, spray angle 60°, spray volume adjustable
Control accuracy	Temperature resolution: 0.01°C; Humidity resolution: 0.1%R.H; Test area temperature deviation: 3°C; Humidity deviation: 3%R.H; Blackboard temperature deviation: ±3°C; Irradiation intensity deviation: 10%W/m".
Water supply method	Automatic/manual dual water supply mode The equipment comes with a small pure water filter to supply water	Automatic/manual dual water supply mode, the equipment comes with ultrapure water machine and water chiller
Equipment power supply and power	AC380V three-phase four-wire + protective grounding: voltage fluctuation range is ±10%V, power is 15.6KW	AC380V three-phase four-wire + protective grounding: voltage fluctuation range is ±10%V, power is 20.6KW

Test standards

1）GBT 2423.24-2013/IEC 60068-2-5: 2010 2）GBT164222-2014/ISO4892-2:2006

3）GBT164221-2006/ISO4892-1:1999 4）GB-T1865-2009/IS011341:2004 5）GB/T35 11-2008/ISO4665:1998 6）GBT24234-2008/IEC6008-2-30:2005 7）GB/T10586-2006 8）GBT5170.9-2008

9）GJB1507A-2009

Main spare parts list

Serial No.	Accessory Name	Brand	Quantity
1	Test chamber	Homemade	1 unit
2	Sample rack	Homemade	1 piece
3	Lamp cooling fan	Yutian	1 unit
4	Circulation motor	Yutian	3 units
5	Compressor	Copeland/Taikang	1 unit
6	Condenser	Yongqiang/Aojia	1 unit
7	Condenser fan	Weiguang Motor	1 unit
8	Evaporator	Yongqiang/Xingyue	1 unit
9	Oil separator	Emerson	1 unit
10	High-voltage switch	Saginomiya	1 piece
11	Dryer	Emerson	1 piece
12	Refrigerant solenoid valve	Saginomiya/Castor	1 piece
13	Electronic expansion valve	Saginomiya/Sanhua	1 piece
14	R404a refrigerant	Juhua/Dupont	3kg

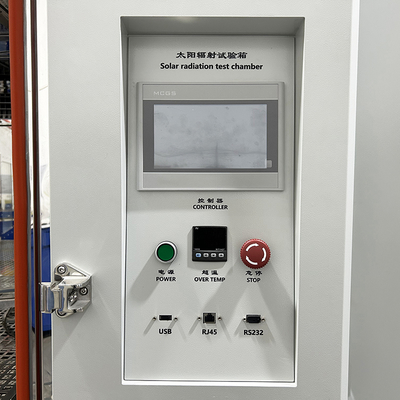

15	Controller	Zhongzhi	1 unit
16	Temperature sensor	US Omega	2 pieces
17	Light intensity sensor	Hash of the Netherlands	1 set
18	Humidity sensor	VAISALA of Finland	1 set
19	Long arc xenon lamp tube	Yuyu	6 pieces
20	Xenon lamp control power supply	Homemade	3 sets
21	Main power switch	Fuji of Japan	1 piece
22	Contactor	Schneider	6 pieces
23	Heating tube	Video	3 pieces
24	Thermal overload relay	Schneider	3 pieces
25	Temperature limiter	Rainbow of Korea	2 pieces
26	Solid state relay	Carlo Gavril	2 sets
27	Phase sequence protector	Carlo Gavril	1 piece
28	Relay	Omron	3 pieces
29	Others	Domestic high quality	1 batch
