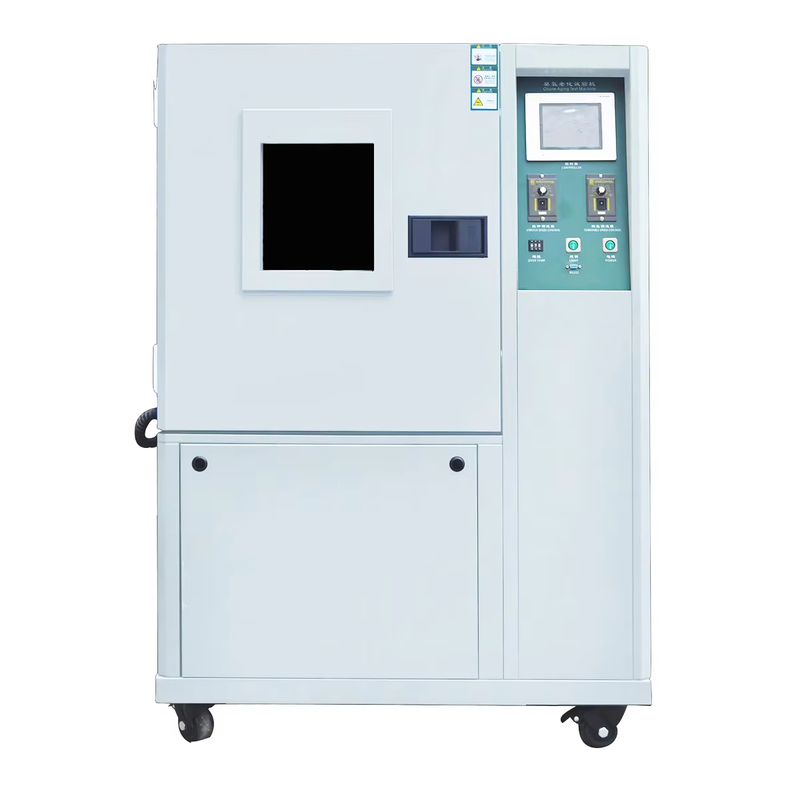

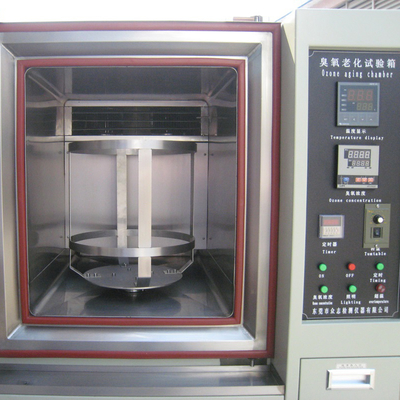

Name: CZ-150CY Customized High Precision Material Environmental Testing Lab Equipment Laboratory Chamber Bench Ozone Aging Test
Brand: Dongguan Zhongzhi Times Test Equipment Co., Ltd.
Availability: InStock

Home Products Aging testing machine

CZ-150CY Customized High Precision Material Environmental Testing Lab Equipment Laboratory Chamber Bench Ozone Aging Test

Product Details:

Contact Now

Detailed Product Description

保修期:	1年	支持定做:	OEM, ODM
原产地:	Guangdong, China	品牌:	ZHONGZHI
型号:	CZ-150CY	功率:	4.6千瓦
电压:	220V	类型:	/
产品名称:	臭氧老化试验机	温度:	RT + 10 ℃ ~ 60 ℃
湿度范围:	≤ 65% RH	臭氧:	0pphm ~ 1000pphm
旋转速度:	1-7 R/min可调	拉伸速度:	0.5hz ± 0.025 HZ (30次/min)
拉伸夹具:	0-100毫米，可调	产品延伸率:	1% ~ 100% 可调
温度波动:	± 0.5 ℃	温度均匀性:	± 2 ℃

Products Description

Product Introduction

This series of test chambers uses an ozone generator to generate high concentrations of ozone, which can be used for aging tests of non-metallic materials and organic materials (coatings, rubber, plastics, paints, pigments, etc.) under ozone conditions. It can also be used to check the ability of samples to withstand certain corrosion. The content of ozone in the atmosphere is very small, but it is the main factor for rubber cracking. The ozone aging chamber simulates and strengthens the ozone conditions in the atmosphere, studies the effect of ozone on rubber, and quickly identifies and evaluates the anti-ozone aging performance of rubber and the protective effectiveness of anti-ozonants, and then takes effective anti-aging measures to increase the service life of rubber products.

Model	CZ-150CY	CZ-150CYH	CZ-Customized
Workshop size (mm)	500 X600X500	500 X600X500	Customized
Temperature range	RT+10°C~+60°C	Customized	Customized
Humidity range	<75%RH	30%~85%RH adjustable	Customized
Control accuracy	Temperature fluctuation: ±0.5°C; Temperature uniformity: 2°C; Temperature deviation: 1°C; Ozone concentration fluctuation: 5pphm%
Turntable speed	1~7r/min adjustable
Stretching speed	0.5HZ ± 0.025HZ (30 times)
Stretching clamping distance	0~100mm adjustable
Product extension length	1~100mm adjustable

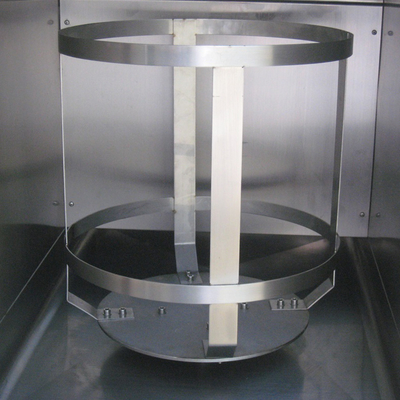

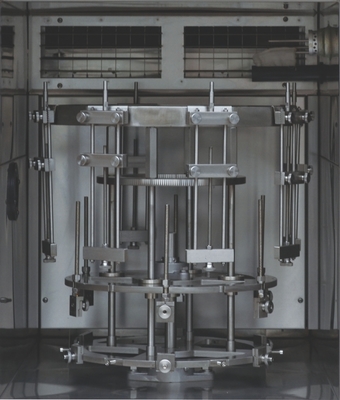

Clamp	Standard configuration: 6 sets of dynamic fixtures, 6 sets of static fixtures, expandable to 12 sets
Ozone concentration	0~1000pphm adjustable
Odor concentration deviation	+5%pphm
Airflow speed	Ozone supply air flow speed 12~16mm/s: Temperature and humidity control air flow speed 600mm/s100mm/s

Specification

Test standards

GB/T 7762-2014/IS01431/DIN53509/ Static tensile test for ozone cracking resistance of vulcanized rubber or thermoplastic rubber; GB/T2951.21-2008 IEC60811-2-1-2001 General test methods for insulation and sheath materials of cables and optical cables, ozone resistance test part GB/T13642-1992 Dynamic tensile test method for ozone aging resistance of vulcanized rubber GB/T24134-2009/ISO7326:2006 Evaluation specification for ozone resistance of rubber and plastic hoses under static conditions

Certifications

Company Profile

Workshop Strength

Invention Patent

Packaging & Shipping

Packing: 1. Out packing:Standard export wooden case. 2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners. 3. Checking teams: Specialized staff to inspect and classified your goods. Shipping: You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.

FAQ

1. Who are we?
Dongguan Zhongzhi Times Test Equipment Co., Ltd., a subsidiary of Guangdong Zhognzhi Testing Instruments Co., Ltd., was founded in 2005, with 1,2000m² production area and 60+ employees, a leading high-tech enterprise specializing in environmental simulation testing chambers manufacture.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final double inspection before shipment;

3. What can you buy from us?
Salt Spray Test Machine,Rain Test Equipment,Temperature Humidity Test Machine, UV&Xenon Test Equipent, Universal Test Machine. High and low temperature testing chamber, constant temperature and humidity test chamber, etc.

4. Why should you buy from us not from other suppliers?
20+ years test equipment source manufacturer; Reliable quality,one equipment can use over 11+years; 24 hours after-sales online; Various types of different testing equipments.

5. What services can we provide?
Accepted Delivery Terms: FOB, DDP, DDU, CFR, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, Cash;
Language Spoken: English, Chinese, French
