Name: CZ-TB-500CY ASTM B117 Pure Titanium Plate Material Test Machine Price Used Salt Spray Chambe
Brand: Dongguan Zhongzhi Times Test Equipment Co., Ltd.
Availability: InStock

Home Products Hot Sale

CZ-TB-500CY ASTM B117 Pure Titanium Plate Material Test Machine Price Used Salt Spray Chambe

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Zhongzhi

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	3.6Kw, Electronic	Accuracy:	Temperature Deviation ± 2.0 ℃
Voltage:	220V	Type:	/

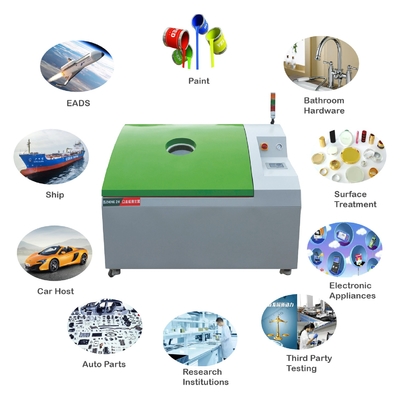

Application:	Auto Testing, Laboratory Testing, Lab Testing, Electrical Testing, Plastic Testing, Metal, Alloy, Metal Coatings, Organic Coatings Etc	Protection Class:	/
Power Supply:	AC220V 50/60HZ	Material:	Titanium Plate
Testing Method:	NSS ACSS/CASS	Humidity Range:	≥90RH
Brine Concentration:	Sodium Chloride Solution 5%

Products Description

Product Introduction

This equipment is mainly used to detect discontinuities such as pores or other defects in metals and their alloys, metal coatings, organic coatings, anodic oxidation films, and conversion films. This salt spray machine laboratory uses thermal radiation heating to maintain the required temperature of the testing space, thereby ensuring the accuracy of the test.

Product Structure Features

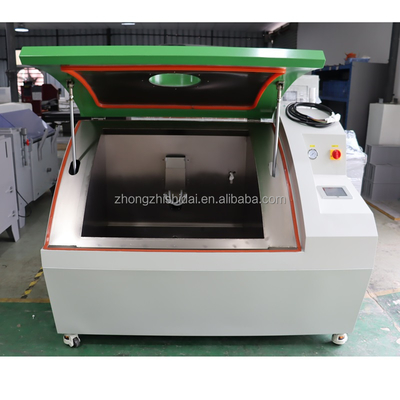

1. The inner box of the equipment is made of TA1 pure titanium plate with full welding 2. The outer box of the equipment is made of stainless steel plate with baking varnish 3. The sealing cover of the laboratory is made into an inclined surface to prevent condensed water from dripping onto the sample surface 4. Water and electricity separation structure, easy to clean 5. The pressure air barrel adopts SUS304# stainless steel high-pressure barrel for best insulation effect 6. Beautiful appearance, click the box cover lifting button to automatically open or close the box cover 7. The lab seal adopts silicone sealing strip sealing method to ensure that the corrosive gas in the box does not leak 8. Moving casters and positioning foot cups are installed at the bottom of the box body, which can be easily moved and positioned

Specification

Model	CZ-TB-500CY	CZ-TB-1600CY	CZ-TB-2000CY
Internal dimensions (mm)	1000x650x720	1600x800x1000	2000x800x1000
External dimensions (mm)	1700x1400x1000	2300x1600x1250	2700x1600x1250
Temperature range of lab	RT+5°C~60°C
Saturation bucket temp range	RT~70°C
Humidity range	≥90RH
Salt water spray volume	1~2ml/(h · 80cm2) (Collect for at least 16 hours and take the average)
Spray Pressure	70~170KPa
PH value	6.5~7.2/3.0-3.2
PH value of the collection liquid	6.5~7.2/3.1-3.3

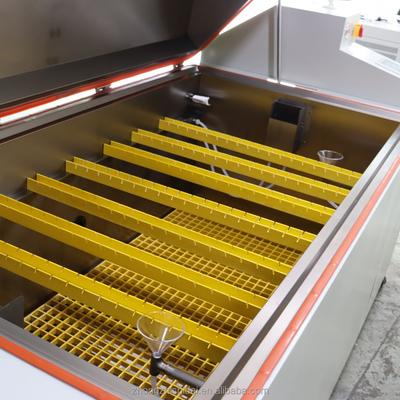

Sample placement angle	20 ± 5 ° (inclined from the vertical plane)
Internal/External Box Material	Inner titanium plate, outer stainless steel plate baked with paint
Spray method	Continuous spray, periodic spray, self selection
Control accuracy	Temperature deviation: Soil 2.0 ° C
Control system	Color LCD touch screen controller
Power Supply	AC220V 50/60HZ single-phase two-wire+protective grounding

Meet the standards for testing methods and equipment execution

IEC60068-2-11-1981 Salt spray test method

ASTM.B117-2011 Salt spray test

ASTM-B368-09 Standard test method for copper acetate and salt spray test (CASS Test)

JIS H8502 Salt water spray test method

GB/T10125-2021/ISO9227:2017 Salt water spray test method

GB-T5170.8-2008 Inspection method for environmental test equipment for electrical and

electronic products-Salt spray test equipment

GB-T5170.11-2008 Inspection method for corrosive gas testing equipment

GB-T10587-2006 Technical conditions for salt spray test chamber

GBT 20121-2006/ISO11474-1998 Corrosion of metals and alloys - Corrosion test in artificial atmosphere

Intermittent salt spray - Outdoor accelerated test -Ulcer test

Certifications

Company Profile

Workshop Strength

Invention Patent

Packaging & Shipping

Packing: 1. Out packing:Standard export wooden case. 2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners. 3. Checking teams: Specialized staff to inspect and classified your goods. Shipping: You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
