CZ-BL-500C Factory Price Salt Spray Corrosion for Test Machine 500 Liter Glass Chamber 220V 1-Year Warranty

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Zhongzhi

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	2.6KW	Accuracy:	Temperature Deviation: ± 2.0 ℃
Voltage:	220V	Type:	/
Protection Class:	/	Product Name:	Fiberglass Salt Spray Machine
Power Supply:	AC220V 50HZ	Material:	Glass Fiber Reinforced Plastics
Testing Method:	NSS ACSS/CASS	Salt Water Tank Size (mm):	700*930
Application:	Metal, Alloy, Metal Coatings, Organic Coatings Etc	Brine Concentration:	Sodium Chloride Solution 5%
Power:	Electronic	MOQ:	1 Set
Language:	Chineses-English

Products Description

Product Introduction

This test equipment simulates the corrosion test in artificial environment, and is used to test the quality of metal materials with or without anti-corrosion protection; it is suitable for rapid analysis of discontinuities, holes and damage in organic and inorganic coatings. In addition, for the purpose of quality control, it can be compared between samples coated with the same coating; salt spray test is particularly suitable for detecting discontinuities such as pinholes and other defects in certain metals, organics, anodized and conversion coatings; among them

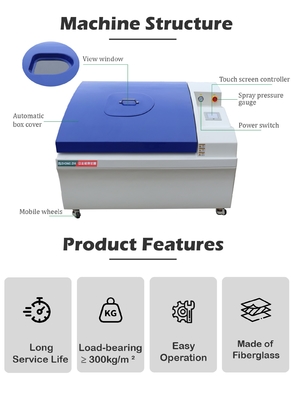

Product Structure Features

1. The equipment is made of high temperature resistant resin + glass fiber (glass reinforced plastic), and the entire box has good corrosion resistance.

2. The sealing cover of the test chamber is made into an arc-shaped slope to prevent condensed water from dripping onto the sample surface.

3. Water and electricity separation structure, easy to clean 4. The pressure air barrel adopts SUS304# stainless steel high-pressure barrel for best insulation effect. 5. Beautiful appearance The sealing cover adopts cylinder push mode, just click the lifting button to open or close the box cover 6. The laboratory seal adopts silicone sealing strip sealing mode to ensure that the corrosive gas in the box does not leak 7. The bottom is equipped with mobile casters and positioning foot cups for easy movement and positioning

Specification

Brine tank size (mm)	Φ700xH 930, capacity 300L
Net weight of equipment	About 200kg
Power supply	AC(220+10)V 50Hz single-phase three-wire
Power supply conditions	The grounding resistance of the protective ground wire is less than 4Ω; TN-S power supply or TT power supply the user is required to configure an air or power switch of corresponding capacity for the equipment at the installation site, and this switch must be used independently for this equipment (it is prohibited to use a knife switch or power socket).
Power supply capacity	AC220C 50HZ total power 2.6Kw Maximum current: 12A (recommended switch capacity not less than: 20 A, switch less than 2.5 meters from the equipment power supply)
Test environment conditions	Ambient temperature is +25℃, relative humidity ≤85%RH, no sample in the test chamber (unless otherwise specified)
Test room temperature range	RT+5°C~55°C
Saturated barrel temperature range	RT+5℃~65°℃
Temperature control performance	Temperature deviation: ±2.0℃ Temperature uniformity: ≤2℃ Temperature fluctuation: ±0.5℃
Test room heating rate	RT->+50'C≤45 min
Saturated barrel heating rate	RT→+63'C≤45 min
Test conditions	NSS or AASS test temperature 35℃, saturated barrel temperature 47℃℃, spray time 1min~9999h adjustable; CASS test temperature 50℃, saturated barrel temperature 63℃, spray time 1min~9999h adjustable; PH value of medicine: NSS test 6.0~7.0 AASSICASS test 3.0~3.1 Spray solution pH value: NSS test 6.5~7.2 AASS/CASS test 3.1~3.3 Running time: 1S ~9999H can be set arbitrarily Spray time: 1S ~999H can be set arbitrarily; Interval period: 1S ~999H can be set arbitrarily Note: The loss of carbon dioxide in the solution during spraying may cause changes in pH value. The following methods can be used, such as heating the solution to above 35°C before placing it in the test equipment, or using fresh boiling water to prepare the solution to reduce the carbon dioxide content in the solution.

Test standards

IEC60068-2-11-1981 Salt spray test method

ASTM.B117-2011 Salt spray test

ASTM-B368-09 Standard test method for copper acetate and salt spray test (CASS Test)

JIS H8502 Salt water spray test method

GB/T10125-2021/ISO9227:2017 Salt water spray test method

GB-T5170.8-2008 Inspection method for environmental test equipment for electrical and

electronic products-Salt spray test equipment

GB-T5170.11-2008 Inspection method for corrosive gas testing equipment

GB-T10587-2006 Technical conditions for salt spray test chamber

GBT 20121-2006/ISO11474-1998 Corrosion of metals and alloys - Corrosion test in artificial atmosphere

Intermittent salt spray - Outdoor accelerated test -Ulcer test

Certifications

Company Profile

Workshop Strength

Invention Patent

Packaging & Shipping

Packing: 1. Out packing:Standard export wooden case. 2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners. 3. Checking teams: Specialized staff to inspect and classified your goods. Shipping: You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.

FAQ

1. Who are we?
Dongguan Zhongzhi Times Test Equipment Co., Ltd., a subsidiary of Guangdong Zhognzhi Testing Instruments Co., Ltd., was founded in 2005, with 1,2000m² production area and 60+ employees, a leading high-tech enterprise specializing in environmental simulation testing chambers manufacture.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final double inspection before shipment;

3. What can you buy from us?
Salt Spray Test Machine,Rain Test Equipment,Temperature Humidity Test Machine, UV&Xenon Test Equipent, Universal Test Machine. High and low temperature testing chamber, constant temperature and humidity test chamber, etc.

4. Why should you buy from us not from other suppliers?
20+ years test equipment source manufacturer; Reliable quality,one equipment can use over 11+years; 24 hours after-sales online; Various types of different testing equipments.

5. What services can we provide?
Accepted Delivery Terms: FOB, DDP, DDU, CFR, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, Cash;
Language Spoken: English, Chinese, French
