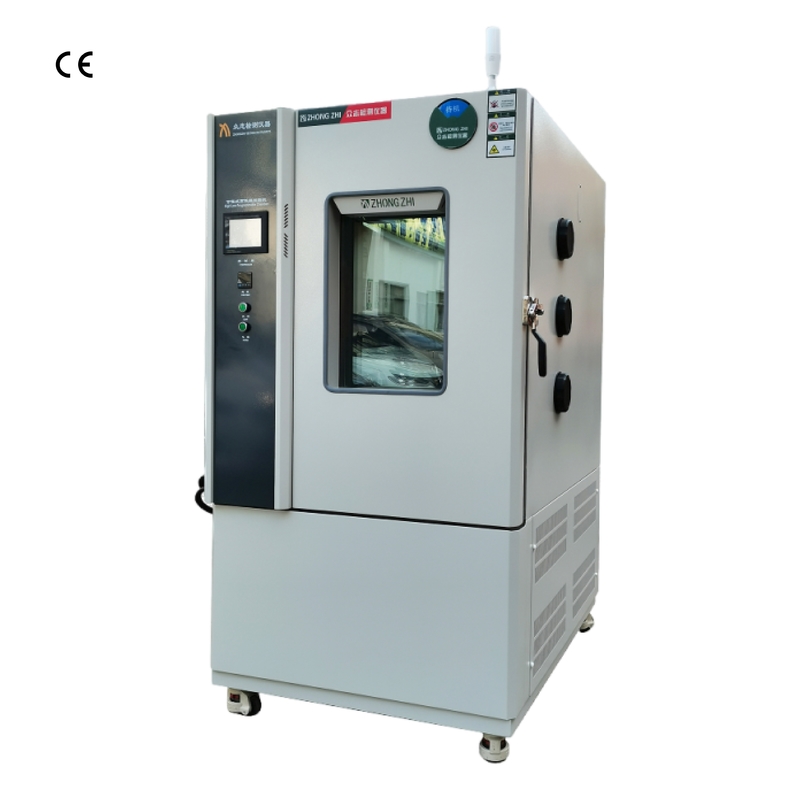

Name: CZ-A-80 Artificial Climate Change Test Equipment Climate for Plastic
Brand: Dongguan Zhongzhi Times Test Equipment Co., Ltd.
Availability: InStock

Home Products Temperature and humidity testing machine

CZ-A-80 Artificial Climate Change Test Equipment Climate for Plastic

Product Details:

Contact Now

Detailed Product Description

保修期:	1年	支持定做:	OEM, ODM
原产地:	Guangdong, China	品牌:	Zhongzhi
功率:	5.1KW	精度:	温度分辨率: 0.01 ℃
电压:	220V	类型:	/
应用:	自动测试, 塑料测试, 实验室测试, 实验室测试, 电气测试	防护等级:	/
温度范围:	-70 ~ + 150 ℃	电源:	AC2200V -50 ± 0.5HZ
压缩机:	法国Tecumseh/德国Bitzer	控制器:	韩国TEMI
内部/外部材料:	Sus304不锈钢	绝缘材料:	耐高温高密度聚氨酯硬泡
实验室体积:	80L	工作noice:	75dB
冷却系统:	空气/水冷却/双段压缩机	保护装置:	查看目录的详细信息

Products Description

Product Introduction

This series of programmable constant temperature and humidity testers are also known as high temperature and humidity alternating testers or constant temperature baths. They are mainly used to simulate the harsh high temperature or humidity environment that electronic instruments, new materials, electrical engineering, vehicles, metals, electronic products, aerospace materials, etc. may encounter during transportation, storage, and use; or to test the high temperature and humidity resistance of materials, accessories, or instruments and equipment in a high temperature and humidity alternating environment, as well as the possible damage and shortened lifespan.

Product Features

The test chamber consists of two parts: the main heat preservation box and the independent refrigeration unit.

The outer box is made of high-quality anti-corrosion electrolytic plate, and the surface is electrostatic powder painted, which is beautiful and generous;

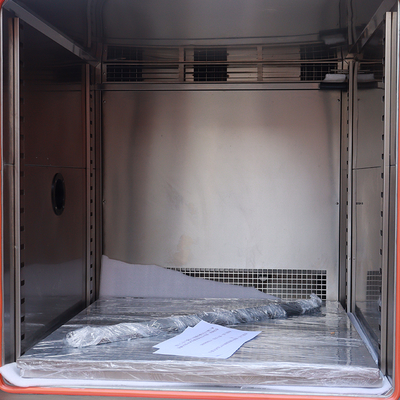

the inner box is made of SUS304 stainless steel plate, and the inner wall is treated to ensure the insulation of the inner tank and safe use;

the multi-layer vacuum glass observation window, with electronic defogging film heating and sweat prevention, is convenient for viewing the test, and the refrigeration system adopts independent cold end and hot end PID adjustment;

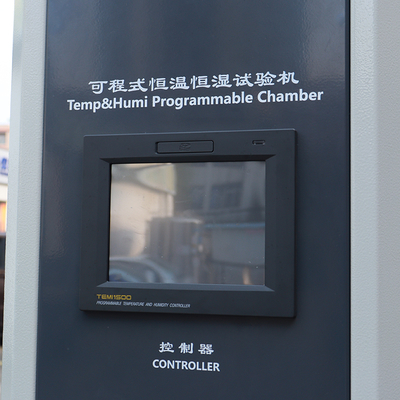

it avoids the energy waste caused by the hedging of cooling capacity and heating capacity, and effectively saves electricity bills. The compressor adopts imported brands and comes with PTC temperature sensor. When the compressor is over-temperature, it can realize over-temperature protection. The direct color LCD clock-type PLC architecture controller, multiple groups of intelligent PD control: the fixed value operation time setting can reach 999999h59m;

7-inch resolution: 800480, 65535 color, LED backlight display screen, test curve screen display, can be connected to the computer to display the curve, data acquisition;

can be used as a monitoring and remote control system; can be used for multiple machines synchronous control.

Specification

Model	CZ-A-80	CZ-A-225	CZ-A-408	CZ-A-608	CZ-A-1000
Inner size（mm）	400x500x400	500x750x600	600x850x800	800x950x800	1000x1000x1000
Outer size（mm）	900x1583x1106	700x1893x1628	800x1939x1828	1000x2049x1828	1200x2099x2028

Temperature range	-70°C~+180°C
Humidity range	20%~98%R.H. (10%-98%R.H/5%~98%R.H is a special selection condition)
Analysis accuracy/uniformity	0.01°C
Control accuracy/fluctuation	+1.0°C;+0.5°C
Heating/cooling time	About 3.0°C/minute; About 1.0C/minute (2C~15C drop per minute or more is a special selection condition)
Internal and external materials	Cold-rolled steel plate painted, inner box SUS 304# stainless steel plate
Insulation materials	High temperature resistant high density polyacetamide rigid foam insulation material
Cooling system	Air-cooled/single-stage compressor (-20°C), air and water-cooled/two-stage compressor (-40°C~-70°C)
Protective device	No fuse switch, compressor overload protection switch, refrigerant high and low voltage protection switch, over-humidity and over-temperature protection switch, fuse, fault warning system
Accessories	Recorder (optional), viewing window, 50mm test hole, PL box light, partition, dry and wet ball gauze
Controller	Korean brand or customized optional
Compressor	French "Tai-kang" brand
Power supply	1 medium 220VAC+10%50/60Hz & 3 medium 380VAC+10%50/60HZ

Meet the standards for testing methods and equipment execution

GB/T 2423.1-2008/IEC6008-2-1-2007 Low temperature test method
GB/T 2423.2-2008 High temperature test method
GJB 150.3A-2009 High temperature test method
GJB 150.4A-2009 Low temperature test method
GB/T 2423.22-2008 Temperature change rate test method
GB/T 2424.5-2006 Temperature test chamber performance confirmation
GB/T 10589-2008 Low temperature test chamber technical conditions
GB/T 2423.3-2008(IEC68-2-3) Constant humidity test method
GJB 150.9A-2009 Humidity test method
GB/T 2423.4-2008/IEC6008-2-30:2005 Alternating humidity method
GB/T 5170.18-2005 Temperature/humidity combination cycle test equipment calibration method
GB/T 10586-2006 Humidity and heat test chamber technical conditions
GB/T 2424.6-2006 Temperature/humidity test chamber performance confirmation
GB/T 2424.7-2006 Measurement of temperature test chamber (with load)

Certifications

Company Profile

Workshop Strength

Invention Patent

Packaging & Shipping

Packing: 1. Out packing:Standard export wooden case. 2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners. 3. Checking teams: Specialized staff to inspect and classified your goods. Shipping: You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
