Name: CZ-C3-42A Laboratory Lithium Battery Fast Thermal Temperature Test Chamber Simulate Climatic Condition Thermal Shock Machine
Brand: Dongguan Zhongzhi Times Test Equipment Co., Ltd.
Availability: InStock

Home Products Temperature and humidity testing machine

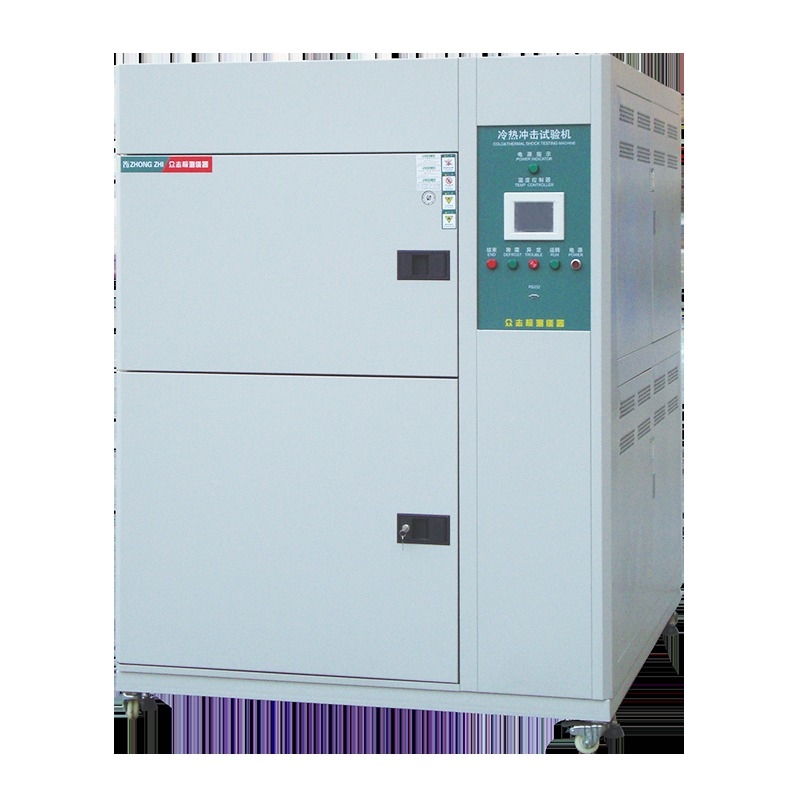

CZ-C3-42A Laboratory Lithium Battery Fast Thermal Temperature Test Chamber Simulate Climatic Condition Thermal Shock Machine

Product Details:

Contact Now

Detailed Product Description

保修期:	1年	支持定做:	OEM, ODM
原产地:	Guangdong, China	品牌:	Zhongzhi
功率:	21KW	精度:	温度偏差: ± 2.0 ℃
电压:	380V	类型:	/
防护等级:	/	温度范围:	-55 ℃ ~ + 200 ℃
电源:	AC380V +-10% 50/60HZ	压缩机:	法国Tecumseh/德国Bitzer
控制器:	韩国TEMI	绝缘材料:	耐高温高密度聚氨酯硬泡
内部材料:	SUS304不锈钢	外层材料:	优质防腐冷轧板
工作noice:	75dB	冷却系统:	空气/水冷却/双段压缩机
保护装置:	查看目录的详细信息

Products Description

Product Introduction

Thermal shock test chamber is used to test the degree to which materials or composite structures can withstand continuous high and low temperature environments in an instant, so as to test the chemical changes or physical damage caused by thermal expansion and contraction in the shortest time. Applicable objects include lithium batteries, metals, plastics, rubber, electronics and other materials, which can be used as a basis or reference for product improvement.

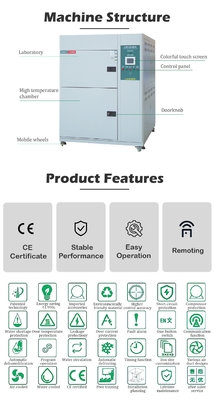

Product Features

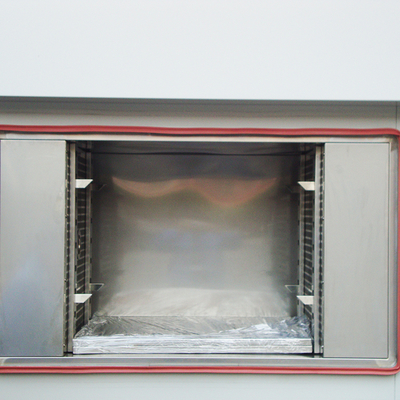

1. The two-chamber equipment area is divided into two parts: high temperature area and low temperature area. The test product is placed in the basket. When impacting, the basket moves the test product into the high temperature area or low temperature area for impact. The test product is dynamic;

2. The touch-screen graphic control operation interface is adopted, which is easy to operate;
3. The impact method uses the air duct switching method to introduce the temperature into the test area for hot and cold impact test;

4. When high temperature impact or low temperature impact, the maximum time can reach 999H, and the maximum cycle can reach 9999 times;

5. The system can be used for automatic cycle engine or manual selective impact;

6. The cooling adopts a binary refrigeration system, which has a fast cooling effect and the cooling method is water cooling.

Specification

Model	CZ-C3-42(A-C)	CZ-C3-80(A-C)	CZ-C3-150(A-C)	CZ-C3-225(A-C)	CZ-C3-408(A-C)
Inner size（mm）	400x350x300	500x400x400	600x500x500	600x600x550	700x600x600
Outer size（mm）	1100x1930x1450	1200x2060x1550	1300x2390x1670	1300x2570x1700	1400x2630x1750

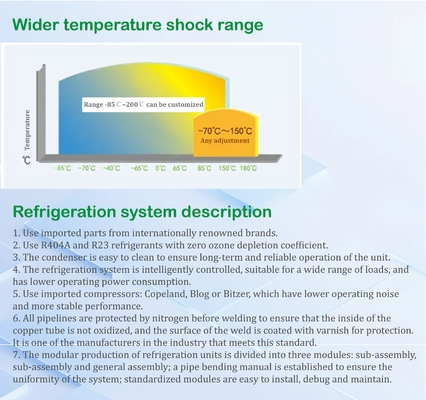

Temperature range	50℃~A:-45℃; B:-55℃; C:-65℃); (high temperature area: +60℃~+150℃; low temperature area: -10℃~-65℃)
Heating time (heat storage area)	RT~200℃ takes about 35min
Cooling time (cold storage area)	RT~-70%C takes about 55 minutes
Temp recovery time/conversion time	≤5min/≤10secl
Temp control accuracy/distribution accuracy	±0.5℃/+2.5%℃
Internal and external materials	The outer box is SUS304# stainless steel with surface stripe treatment or cold rolled steel plate with baking varnish treatment(optional), and the inner box is SUS304# stainless steel
Insulation materials	High temperature resistant high density aluminum silicate fiber cotton or PU foam insulation material
System	P.1.D+S.S,R+ microcomputer balanced temperature control system
Cooling system	Semi-enclosed two-stage compressor (water-cooled) / fully enclosed two-stage compressor (air-cooled)
Safety protection device	No-fuse switch, compressor high and low pressure protection switch,) Refrigerant high pressure protection switch, fault warning system, electronic alarm
Accessories	Observation window (special option), two upper and lower adjustable partitions, power line hole, casters, horizontal bracket
Power supply	AC380V 50Hz/60Hz 3Ф
Weight (approximately)	500KG	700KG	900KG	1100KG	1300KG
Controller	South Korea "SAMWOM TECH"
Compressor	French "Taikang"/German Bitzer customized brand

Meet the standards for testing methods and equipment execution

GB/T 5170.2-2008 Temperature test equipment

GB/T 2423.1-2001 Test A: Low temperature test method

GB/T 2423.2-2001 Test B: High temperature test method

GB/T 2423.22-2002 Test N: Temperature change test method

GJB/150.3-1986 High temperature test
GJB/150.4-1986 Low temperature test

GJB/150.5-1986 Temperature shock test

Certifications

Company Profile

Workshop Strength

Invention Patent

Packaging & Shipping

Packing: 1. Out packing:Standard export wooden case. 2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners. 3. Checking teams: Specialized staff to inspect and classified your goods. Shipping: You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.

FAQ

1. Who are we?
Dongguan Zhongzhi Times Test Equipment Co., Ltd., a subsidiary of Guangdong Zhognzhi Testing Instruments Co., Ltd., was founded in 2005, with 1,2000m² production area and 60+ employees, a leading high-tech enterprise specializing in environmental simulation testing chambers manufacture.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final double inspection before shipment;

3. What can you buy from us?
Salt Spray Test Machine,Rain Test Equipment,Temperature Humidity Test Machine, UV&Xenon Test Equipent, Universal Test Machine. High and low temperature testing chamber, constant temperature and humidity test chamber, etc.

4. Why should you buy from us not from other suppliers?
20+ years test equipment source manufacturer; Reliable quality,one equipment can use over 11+years; 24 hours after-sales online; Various types of different testing equipments.

5. What services can we provide?
Accepted Delivery Terms: FOB, DDP, DDU, CFR, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, Cash;
Language Spoken: English, Chinese, French
